Specifications

K650

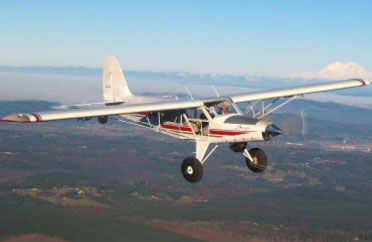

If your flying needs allow the use of an experimental licensed aircraft and your flight requirements demand the maximum short field performances, then you need Sherpa’s new K-650T. Whether hauling passengers or sup- plies, this new 8-place Honeywell turbine powered, ruggedly constructed Sherpa has the ability to go wherever you want on wheels, skis, or floats. With a 3000 lb. useful load and a fuel capacity of 346 gal., economy cruise set- tings can provide as much as 8 hours of flight time plus reserves!

---

[one_half]
Power Plant:

Honeywell TPE331-5 840 HP

TPE331-10 1000 HP Optional

Fuel Capacity: 346 US gal.

Accommodations: 8 Seats w/aft Baggage

Tires: 29 x 11 x 10

Optional 35 in. Alaskan Bush Wheel

Oxygen: Optional For All 8 Positions

---

Weights and Loadings:

Weight Empty 3500 lb.

Max T-O Weight 6500 lb.

Max Wing Loading 20.63 lb./sq.ft.

Max Power Loading -5 8.66 lb./hp

Dimensions, Internal:

Cabin Volume 220 cu. ft.

Baggage Compartment 7.5 cu. ft.

Useful Load 3000 lbs

Performance – at 5000 weight | TPE331-5

T-O Run | 102 ft

Landing Run | 120 ft

Max Rate of Climb at Sea Level | 1900 ft/min

Stall Speed, Flaps Up 0 Thrust | 60 mph

Stall Speed, Flaps Down 0 Thrust | 30 mph

---

Performance – at 6500 weight | TPE331-5

Cruising Speed 18,000 ft. | 188 mph

Economy Cruising 18,000 ft. | 174 mph

Stall Speed, Flaps Up (power on) | 58 mph

Stall Speed, Flaps Down (power on) | 34 mph

Max Rate of Climb at Sea Level | 1400 ft/min

Service Ceiling | 25000 ft.

T-O Run Gross | 336 ft.

Landing Run Groiss | 240 ft.

*Range Max Cruise (42 gal./hr.) +res | 1256 s.m.
[/one_half]

[one_half_last]

Dimensions, External

Wing Span……….47 ft. 4 in.

Wing Chord……….6 ft. 8 in.

Wing Aspect Ratio……….7.1

Length Overall……….34 ft. 1 in.

Height Overall……….9 ft. 9 in.

Tail Plane Span……….18 ft. 3 in.

Wheel Track……….8 ft. 10 in.

Propeller Ground Clearance……….3 ft. 1 in. 3 pnt./1 ft. 7 in. level

Propeller Diameter……….116 in.

3-blade Cabin Door Height……….3 ft. 7 in.

Cargo Door Width……….5 ft. 1 in.

Baggage Door Height……….1 ft. 8 in.

Baggage Door Width……….2 ft. 6 in.
